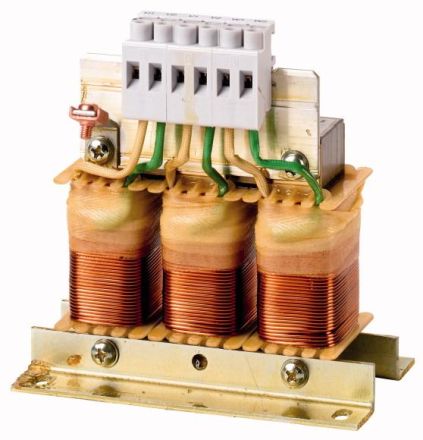

Eaton DX-LM3-063 AC Motor Choke, 269545

In stock

SKU: 477845

Price on request

€451.59

€0

Overview

Motor choke three-phase max. permissible mains voltage 750V AC rated current 63 A inductance 0.5 mH

Property	Value
Rated operating frequency:	0 to 400 Hz
Rated inductance:	0.5 mH
Rated current at AC:	63 A
Suitable as output choke:	no
Suitable as interference suppression choke:	no
Suitable as smoothing choke:	yes
Suitable as commutation choke:	no
Suitable as mains choke:	no
Max. Rated operating voltage Ue:	750 V
Max. operating current (Ith) at operating voltage DC:	63 A
Number of poles, primary side:	3
Protection class (IP):	IP00
Protection class (NEMA):	other
