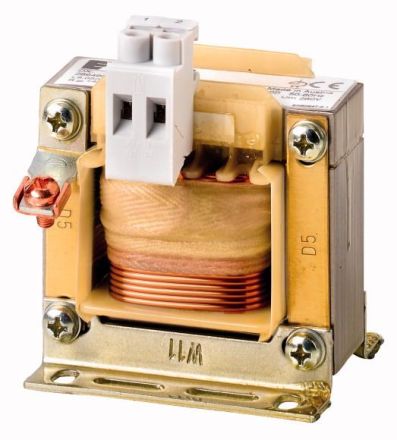

Eaton DX-LN1-018 AC single-phase line choke, 269497

In stock

SKU: 474046

Price on request

€51.58

€0

Overview

Mains choke, rated voltage 230 V AC, single-phase, uk =4%

Property	Value
Rated operating frequency:	50 to 60 Hz
Rated inductance:	1.63 mH
Rated current at AC:	18 A
Suitable as output choke:	no
Suitable as interference suppression choke:	no
Suitable as smoothing choke:	no
Suitable as commutation choke:	no
Suitable as mains choke:	yes
Max. Rated operating voltage Ue:	260 V
Max. operating current (Ith) at operating voltage DC:	18 A
Number of poles, primary side:	1
Relative short-circuit voltage uk:	4 %
Protection class (IP):	IP20
Protection class (NEMA):	other
