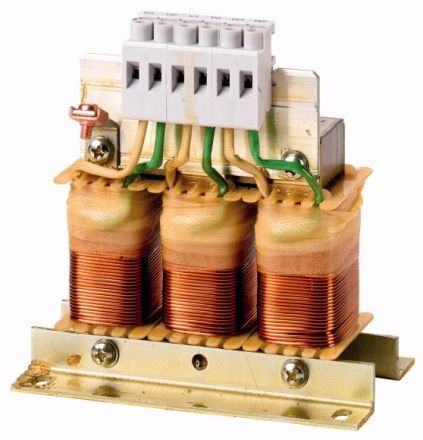

Eaton DX-LN3-160 AC three-phase line choke, 269511

In stock

SKU: 477854

Price on request

€384.54

€0

Overview

Mains choke, rated voltage 480 V AC, three-phase, uk =4%

Property	Value
Rated operating frequency:	50 to 60 Hz
Rated inductance:	0.11 mH
Rated current at AC:	160 A
Suitable as output choke:	no
Suitable as interference suppression choke:	no
Suitable as smoothing choke:	no
Suitable as commutation choke:	no
Suitable as mains choke:	yes
Max. rated operating voltage Ue:	550 V
Max. operating current (Ith) at operating voltage DC:	160 A
Number of poles, primary side:	3
Relative short-circuit voltage uk:	2.5 %
Protection class (IP):	IP00
Protection class (NEMA):	other
