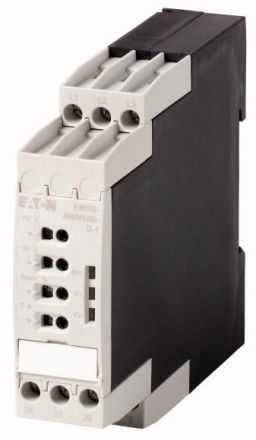

Eaton EMR6-AWN500-D-1 300-500V AC 50/60/400Hz phase monitor, 184771

In stock
SKU: 479986
€215.21
Into a basketIn the basketGo

Overview

Phase monitor, product range: measuring and monitoring relays EMR, multifunctional, power supply from measuring circuit, response/release delay: none = 0 or adjustable 0.1 - 30 s, threshold values and asymmetry adjustable 2 - 25 % of the mean value of the phase voltages, three-phase networks, automatic phase sequence correction, monitoring voltage per phase: UN = 300 - 500 V AC, 50/60/400 Hz V AC, monitoring of: phase sequence (can be deactivated), phase failure, overvoltage, undervoltage, asymmetry, phase sequence, supply voltage: 300 - 500 V AC, 50/60/400 Hz, installation position: any, fastening: snap-on fastening DIN rail IEC/EN 60715, width: 22.5 mm, standards and regulations: IEC, UL, CSA, CCC, GL

PropertyValue
Min. adjustable response delay time:0.1 s
Design of the electrical connection:Screw connection
Type of voltage for actuation:AC
Max. permissible release delay time:30 s
Number of contacts as changeover contacts:2
Min. adjustable release delay time:0.1 s
Max. permissible response delay time:30 s
Width:22.5 mm
Height:85.6 mm
Depth:103.7 mm
Overvoltage detection function:yes
Rated control supply voltage Us at AC 50 Hz:300 to 500 V
With removable terminals:no
Phase sequence monitoring function:yes
Phase failure detection function:yes
Undervoltage detection function:yes
Asymmetry detection function:yes
Voltage measuring range:300 to 500 V
Rated control supply voltage Us at AC 60 Hz:300 to 500 V

Characteristics

HABEMR6-AWN500-D-1 300-500V AC 50/60/400Hz
ManufacturerEaton
HAN184771
GTIN4015081788071
Number of contacts as changeover2
Design of the electrical connectionScrew connection
Rated control supply voltage Us at AC 50 Hz300 to 500 V
Rated control supply voltage Us at AC 60 Hz300 to 500 V
Width22.5 mm
Height85.6 mm
With removable clampsNo
Voltage type for actuationAC
Depth103.7 mm
Eaton EMR6-AWN500-D-1 300-500V AC 50/60/400Hz phase monitor, 184771
Eaton EMR6-AWN500-D-1 300-500V AC 50/60/400Hz phase monitor, 184771
€215.21
Into a basketIn the basketGo
