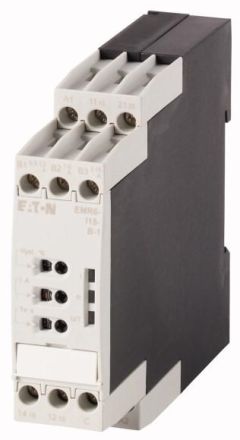

Eaton EMR6-I15-B-1 1-5A 50/60Hz current monitor, 184755

In stock
SKU: 479989
€153.40
Into a basketIn the basketGo

Overview

Current monitor, product range: EMR measuring and monitoring relays, monitoring of single-phase AC networks, response delay: none = 0 or adjustable from 0.1 to 30 s, measuring range extension possible with current transformers, monitoring of: overcurrent, undercurrent, current measuring range: I/I= 0.3 - 1.5 A, 1 - 5 A, 3 - 15 AA, supply voltage: 220 - 240 V AC, 50/60 Hz, installation position: any, fastening: snap-on mounting rail IEC/EN 60715, width: 22.5 mm, standards and regulations: UL 508, CAN/CSA C22.2 No.14, GL, EAC, CCC, RMRS

PropertyValue
Number of contacts as changeover contacts:2
Max. permissible response delay time:30 s
Min. adjustable response delay time:0.1 s
Voltage type for actuation:AC/DC
Design of the electrical connection:screw connection
Width:22.5 mm
Height:85.6 mm
Depth:103.7 mm
With removable terminals:no
1-phase undercurrent possible:yes
3-phase undercurrent possible:no
1-phase overcurrent possible:yes
3-phase overcurrent possible:no
1-phase window possible:no
3-phase window possible:no
Contains DC undercurrent function:yes
Contains DC overcurrent function:yes
DC window function:no
Current measuring range:0.3 to 15 A
Rated control supply voltage Us at AC 50 Hz:220 to 240 V
Rated control supply voltage Us at AC 60 Hz:220 to 240 V
Rated control supply voltage Us at DC:220 to 240 V
External current transformer:no

Characteristics

HABEMR6-I15-B-1 1-5A 50/60Hz
ManufacturerEaton
HAN184755
GTIN4015081787913
Number of contacts as changeover2
Design of the electrical connectionScrew connection
Rated control supply voltage Us at AC 50 Hz220 to 240 V
Rated control supply voltage Us at AC 60 Hz220 to 240 V
Rated control supply voltage Us at DC220 to 240 V
Width22.5 mm
Height85.6 mm
With removable clampsNo
Voltage type for actuationAC/DC
Depth103.7 mm
