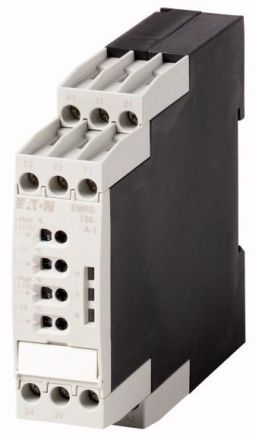

Eaton EMR6-T50-A-1 24-240V AC 50/60Hz temperature monitor, 184786

In stock

SKU: 480006

Price on request

€200.88

€0

Overview

Temperature monitor, product range: measuring and monitoring relays EMR, monitoring of: overheating, undercooling, overheating and undercooling (window), temperature measuring range: -50 - +50 °C, supply voltage: 24 - 240 V AC, 50/60 Hz, 24 - 240 V DC, installation position: any, fastening: snap-on mounting rail IEC/EN 60715, width: 22.5 mm, standards and regulations: UL 508, CAN/CSA 22.2 No.14, EAC, CCC, GL, CE

Property	Value
Number of contacts as changeover contact:	2
Design of the electrical connection:	Screw connection
Type of voltage for actuation:	AC/DC
Width:	22.5 mm
Height:	85.6 mm
Depth:	103.7 mm
With removable terminals:	no
Number of measuring circuits:	1
Error storage possible:	no
External reset possible:	no
Rated control supply voltage Us at AC 50 Hz:	24 to 240 V
Rated control supply voltage Us at AC 60 Hz:	24 to 240 V
Rated control supply voltage Us at DC:	24 to 240 V
Temperature measuring range:	-50 to 50 °C
