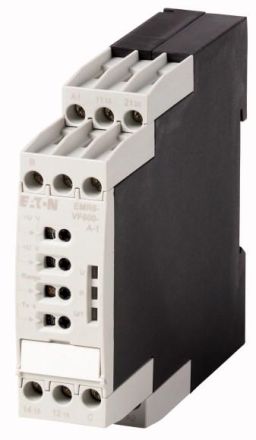

Eaton EMR6-VF600-A-1 24-240V AC 50/60Hz voltage monitor, 184785

In stock

SKU: 480007

Price on request

€196.36

€0

Overview

Voltage monitor, product range: measuring and monitoring relays EMR, monitoring of: overvoltage, undervoltage, overvoltage and undervoltage (window), voltage measuring range: 3 - 30, 5 - 60, 30 - 300, 60 - 600 V, supply voltage: 24 - 240 V AC, 50/60 Hz, 24 - 240 V DC, installation position: any, fastening: snap-on mounting rail IEC/EN 60715, width: 22.5 mm, standards and regulations: UL508, CAN/CSA C22.2 No.14, GL, EAC, CCC, RMRS, RCM

Property	Value
Type of voltage for actuation:	AC/DC
Response value voltage:	3 to 600 V
Max. permissible response delay time:	30 s
Number of contacts as changeover contacts:	2
Design of the electrical connection:	Screw connection
Min. adjustable response delay time:	0.1 s
Width:	22.5 mm
Height:	85.6 mm
Depth:	103.7 mm
Voltage measuring range 1:	3 to 600 V
Rated control supply voltage Us at AC 50 Hz:	24 to 240 V
With removable terminals:	no
1-phase undervoltage possible:	yes
3-phase undervoltage possible:	no
1-phase overvoltage possible:	yes
3-phase overvoltage possible:	no
1-phase window possible:	yes
3-phase window possible:	no
Contains DC undervoltage function:	yes
Contains DC overvoltage function:	yes
Contains DC window function:	yes
Type of voltage of the measuring range:	AC/DC
Rated control supply voltage Us at AC 60 Hz:	24 to 240 V
Rated control supply voltage Us at DC:	24 to 240 V
