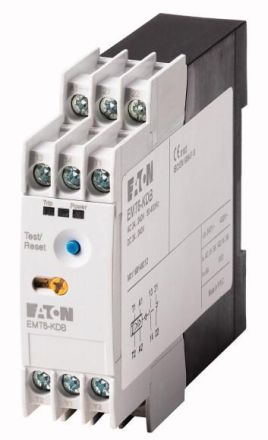

Eaton EMT6-KDB thermistor motor protection switch, 269471

In stock

SKU: 474341

Price on request

€177.89

€0

Overview

Thermistor machine protection relay, mains and error LED display, rated control supply voltage 24-240V 50-400Hz, 24-240V DC switchable with/without restart lock, for manual or remote reset, test button, triggered by short circuit in the sensor line, snap-on mounting

Property	Value
Number of contacts as normally closed:	1
Number of contacts as normally open:	1
Design of the electrical connection:	Screw connection
Type of voltage for actuation:	AC/DC
Width:	23 mm
Height:	83 mm
Depth:	103 mm
With removable terminals:	no
Number of measuring circuits:	1
Error storage possible:	no
External reset possible:	yes
Rated control supply voltage Us at AC 50 Hz:	24 to 240 V
Rated control supply voltage Us at AC 60 Hz:	24 to 240 V
Rated control supply voltage Us at DC:	24 to 240 V
Resistance measuring range:	750 to 12000 Ohm
