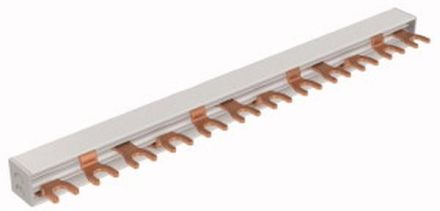

Eaton EP-501069 EVGK-3PHAS/12MODUL fork busbar

In stock
SKU: 880014
€6.67
Into a basketIn the basketGo

Overview

Busbar for circuit breakers, residual current circuit breakers, combined residual current devices, pre-assembled end caps (also available separately), can be cut to length individually, color RAL 7035, halogen-free (DIN EN 60754-1), fire behavior class according to V2, tested by (DIN EN 61439-1:2021-10, DIN EN 61439-6:2013-06), PC-ABS insulation material and PP contact protection material, dielectric strength 36 kV/mm and overvoltage category III

PropertyValue
Number of poles:3
Number of phases:3
Length:213 mm
Cross-section:10 mm²
Rated continuous current Iu:63 A
Max. Rated operating voltage Ue:415 V
Insulated:yes
Suitable for number of devices:4
Suitable for devices with N conductor:no
Pitch:17.8 mm
Suitable for devices with auxiliary switch:no
Conditional rated short-circuit current Iq:25 kA
Design of the electrical connection:Fork
Rated impulse voltage:4 kV

Characteristics

Suitable for devices with auxiliary switchNo
Suitable for devices with N conductorNo
Suitable for number of devices4
Pitch dimension17.8 mm
Rated surge voltage4 kV
HABEVGK-3PHAS/12MODUL
ManufacturerEaton
HANEP-501069
GTIN9010653035138
Number of phases3
Design of the electrical connectionFork
Conditional rated short-circuit current Iq25kA
Rated continuous current Iu63 A
IsolatedYes
Length213 mm
Max. rated operating voltage Ue415V
Number of poles3
Cross-section10 mm²
