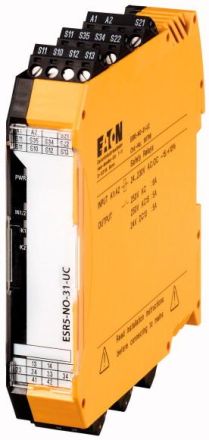

Eaton ESR5-NO-31-UC safety relay, 191796

In stock

SKU: 479595

Price on request

€318.57

€0

Overview

Safety relay for emergency stop, safety doors and light grids up to SILCL 3, Cat. 4, PL e, 1- or 2-channel operation, automatic or manual, monitored start, 3 enabling current paths, 1 signaling current path, US = 24 ... 230 V AC/DC, plug-in screw terminal

Property	Value
Safety type according to IEC 61496-1:	without
Rated control supply voltage Us at AC 60 Hz:	24 to 230 V
Suitable for monitoring position switches:	no
Suitable for monitoring proximity switches:	no
Evaluation of inputs:	single and dual channel
Voltage type for actuation:	AC/DC
Rated control supply voltage Us at AC 50 Hz:	24 to 230 V
Suitable for monitoring magnetic switches:	yes
With UL approval:	yes
With muting function:	no
Rail mounting possible:	yes
Performance level according to EN ISO 13849-1:	Level e
Design:	Basic device
Design of the electrical connection:	Screw connection
Suitable for monitoring optoelectronic protective devices:	yes
Suitable for monitoring EMERGENCY STOP circuits:	yes
Rated control supply voltage Us at DC:	24 to 230 V
Suitable for monitoring valves:	no
Suitable for monitoring tactile sensors:	no
With approval for BG BIA:	no
Width:	22.5 mm
Height:	113 mm
Depth:	114.5 mm
With removable terminals:	yes
With start input:	yes
With Feedback loop:	yes
SIL according to IEC 61508:	3
