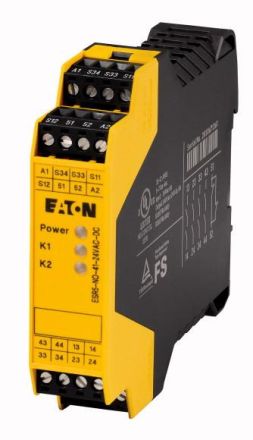

Eaton ESR5-NO-41-24VAC-DC safety relay, 118701

In stock

SKU: 473807

Price on request

€177.09

€0

Overview

Safety relay for implementing the basic functions emergency stop / emergency stop / safety door, single-channel operation, supply voltage 24VDC or 24VAC 50/60Hz, 4 enabling current paths (IEC/EN 60204 stop category 0), 1 signaling current path, touch protection according to EN 50274 when operated vertically from the front, finger and back of the hand safe, suitable for PL c, Cat. 1 according to EN ISO 13849-1 / SILCL 1 according to IEC 62061 / SIL 1 according to IEC 61508 / PL e only possible with the help of fault exclusions

Property	Value
Number of outputs, safety-related, undelayed, contact-based:	4
Safety type according to IEC 61496-1:	without
Rated control supply voltage Us at AC 60 Hz:	20.4 to 24 V
Suitable for monitoring position switches:	yes
Suitable for monitoring proximity switches:	no
Evaluation of inputs:	single and dual channel
Type of voltage for actuation:	AC/DC
Rated control supply voltage Us at AC 50 Hz:	0 to 26.4 V
Suitable for monitoring magnetic switches:	no
With UL approval:	yes
With muting function:	no
Mounting rail mounting possible:	yes
Number of outputs, signaling function, instantaneous, contact-based:	1
Performance level according to EN ISO 13849-1:	Level c
Design:	Basic device
Design of the electrical Connection:	Screw connection
Suitable for monitoring optoelectronic protective devices:	no
Suitable for monitoring EMERGENCY STOP circuits:	yes
Rated control supply voltage Us at DC:	0 to 24 V
Suitable for monitoring valves:	no
Suitable for monitoring tactile sensors:	no
With approval for BG BIA:	no
Width:	22.5 mm
Height:	99 mm
Depth:	114.5 mm
With removable terminals:	yes
With start input:	yes
With feedback loop:	yes
SIL according to IEC 61508:	1
