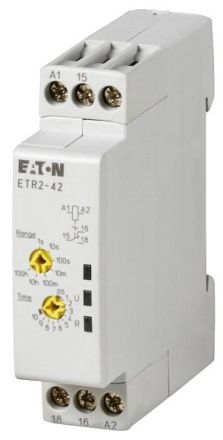

Eaton ETR2-42 time relay, 262688

In stock

SKU: 475463

Price on request

€91.13

€0

Overview

Electronic time relay ETR2, 17.5mm wide, time range 0.05s-100h, 1 changeover contact flashing

Property	Value
Number of outputs, undelayed, changeover contact:	1
Design of the electrical connection:	screw connection
Can be plugged onto contactor:	no
Outputs, switchable delayed/undelayed:	no
Type of voltage for actuation:	AC/DC
Time range:	0.05 to 360000 s
Rated control supply voltage Us at AC 50 Hz:	24 to 240 V
Rated control supply voltage Us at AC 60 Hz:	24 to 240 V
Rated control supply voltage Us at DC:	24 to 240 V
Width:	17.5 mm
Depth:	63 mm
Height:	70 mm
With plug-in base:	no
Remote control possible:	yes
Suitable as remote control:	no
On-delay function:	no
Off-delay function:	no
Function with flickering when switched on:	no
Function with flickering when switched off:	no
Function star/delta:	no
Function pulse forming:	no
Function flashing starting with pause, fixed time:	yes
Function flashing starting with pulse, fixed time:	yes
Function clocking starting with pause, variable:	no
Function clocking starting with pulse, variable:	no
With semiconductor output:	no
Nominal current:	3 A
Suitable for DIN rail mounting:	yes
Suitable for front mounting:	no
