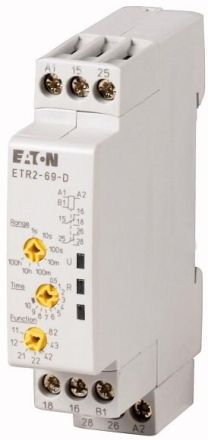

Eaton ETR2-69-D 2W 0.05s-100h time relay, 119428

In stock

SKU: 475633

Price on request

€139.99

€0

Overview

Electronic multifunction time relay ETR2 according to IEC/EN 61812-1, 17.5 mm wide, time range 0.05s-100h, 2 changeover contacts adjustable, 11 delayed on response, 21 pulse-on, 42 flashing, pulse-starting, 43 flashing, pause-starting, 12 delayed off-residue, 22 pulse-off, 82 pulse-forming

Property	Value
Number of outputs, delayed, changeover:	2
Design of the electrical connection:	Screw connection
Can be plugged onto contactor:	no
Outputs, switchable delayed/undelayed:	yes
Type of voltage for actuation:	AC/DC
Time range:	0.05 to 100 s
Rated control supply voltage Us at AC 50 Hz:	12 to 240 V
Rated control supply voltage Us at AC 60 Hz:	12 to 240 V
Rated control supply voltage Us at DC:	12 to 240 V
Width:	17.5 mm
Depth:	63 mm
Height:	80 mm
With plug-in base:	no
Remote control possible:	no
Suitable as remote control:	no
On-delay function:	yes
Off-delay function:	yes
Function with flickering when switched on:	yes
Function with flickering when switched off:	yes
Function with star/delta:	no
Function with pulse forming:	yes
Function with flashing starting with pause, fixed time:	yes
Function with flashing starting with pulse, fixed time:	yes
Function with clocking starting with pause, variable:	no
Function with clocking starting with pulse, variable:	no
With semiconductor output:	no
Nominal current:	3 A
Suitable for DIN rail mounting:	yes
Suitable for front mounting:	no
