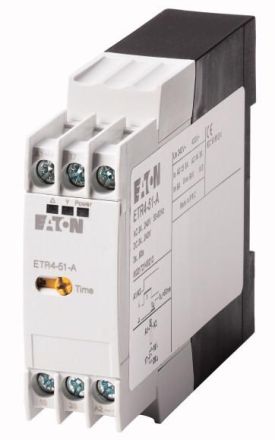

Eaton ETR4-51-A time relay, 031884

In stock

SKU: 473656

Price on request

€78.65

€0

Overview

Electronic time relay according to IEC/EN 61812-1,0435, 22.5mm wide, time range 3-60s, mechanical life 30 * 106, DIN rail mounting, any installation position, 24-240VAC/DC, star-delta switching, industrial design

Property	Value
Number of outputs, undelayed, normally open:	1
Number of outputs, delayed, normally open:	1
Design of the electrical connection:	Screw connection
Can be plugged onto contactor:	no
Outputs, switchable delayed/undelayed:	no
Type of voltage for actuation:	AC/DC
Time range:	3 to 60 s
Rated control supply voltage Us at AC 50 Hz:	24 to 240 V
Rated control supply voltage Us at AC 60 Hz:	24 to 240 V
Rated control supply voltage Us at DC:	24 to 240 V
Width:	23 mm
Depth:	103 mm
Height:	83 mm
With plug-in base:	no
Remote control possible:	no
Suitable as remote control:	no
Function delayed response:	no
Function off-delayed:	no
function with a flicker when switched on:	no
function with a flicker when switched off:	no
function with a star/delta:	yes
function with a pulse forming function:	no
function with a flashing function starting with a pause, fixed time:	no
function with a flashing function starting with a pulse, fixed time:	no
function with a clocking function starting with a pause, variable:	no
function with a clocking function starting with a pulse, variable:	no
with Semiconductor output:	no
Rated current:	3 A
Suitable for DIN rail mounting:	yes
Suitable for front mounting:	no
