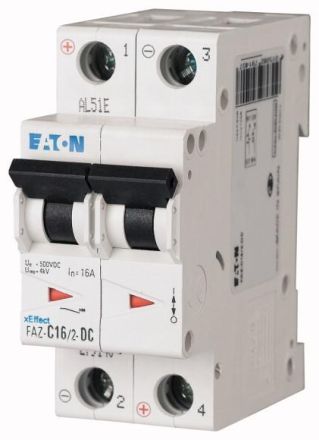

Eaton FAZ-C16/2-DC circuit breaker, 279140

Eaton FAZ-C16/2-DC circuit breaker, 279140

In stock

SKU: 474935

Price on request

€175.33

€0

Into a basketIn the basketGo

Overview

Circuit breaker FAZ-DC, 2-pole, tripping characteristic: C, rated current In: 16 A, switching devices for direct current applications

Property	Value
Tripping characteristic:	C
Rated current:	16 A
Rated voltage:	250 V
Type of voltage:	DC
Frequency:	50 to 60 Hz
Width in pitch units:	2
Number of poles (total):	2
Energy limitation class:	3
Additional equipment possible:	yes
Overvoltage category:	3
Installation depth:	70.5 mm
Protection class (IP):	IP20
Rated switching capacity Icu according to IEC 60947-2 at 230 V:	10 kA
Rated switching capacity Icu according to IEC 60947-2 at 400 V:	10 kA
Pollution degree:	2
Switching neutral conductor:	no
Number of protected poles:	2
Rated insulation voltage Ui:	440 V
Rated impulse withstand voltage Uimp:	4 kV
Ambient temperature during operation:	-25 to 75 °C
Connectable conductor cross-section, stranded:	1 to 25 mm²
Connectable conductor cross-section, solid:	1 to 25 mm²

Characteristics

HABFAZ-C16/2-DC

Manufacturer

HAN279140

GTIN4015082791407

Connectable conductor cross-section solid1 to 25 mm²

Connectable conductor cross-section stranded1 to 25 mm²

Number of protected poles2

Trigger characteristicsC

Rated insulation voltage Ui440V

Rated switching capacity Icu according to IEC 60947-2 at 230 V10kA

Rated switching capacity Icu according to IEC 60947-2 at 400 V10kA

Rated voltage250V

Rated impulse withstand voltage Uimp4kV

Rated current16A

Width in pitch units2

Installation depth70.5 mm

Energy limitation class3

Frequency50 to 60 Hz

Switching neutral conductorNo

Number of poles (total)2

IP protection)IP20

Voltage typeDC

Ambient temperature during operation-25 to 75 °C

Degree of contamination2

Additional equipment possibleYes

Overvoltage category3
