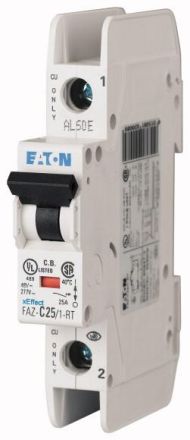

Eaton FAZ-C25/1-RT circuit breaker, 102132

In stock

SKU: 477414

Price on request

€50.32

€0

Overview

Circuit breaker FAZ-RT, 1-pole, tripping characteristic: C, rated current In: 25 A, switching devices for industrial applications and high-end commercial buildings

Property	Value
Tripping characteristic:	C
Rated current:	25 A
Rated voltage:	240 V
Type of voltage:	AC
Frequency:	50 to 60 Hz
Width in pitch units:	1
Number of poles (total):	1
Energy limitation class:	3
Additional equipment possible:	yes
Overvoltage category:	3
Installation depth:	70.5 mm
Protection class (IP):	IP20
Rated switching capacity Icu according to IEC 60947-2 at 230 V:	15 kA
Rated switching capacity Icu according to IEC 60947-2 at 400 V:	15 kA
Pollution degree:	2
Switching neutral conductor:	no
Number of protected poles:	1
Rated insulation voltage Ui:	440 V
Rated impulse withstand voltage Uimp:	4 kV
Ambient temperature during operation:	-25 to 75 °C
Connectable conductor cross-section, stranded:	1 to 25 mm²
Connectable conductor cross-section, solid:	1 to 25 mm²
