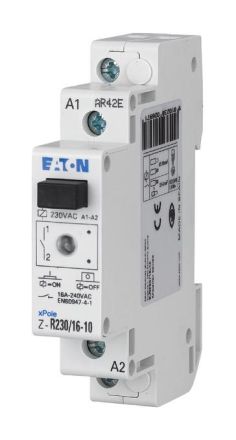

Eaton ICS-R16A230B100 Z-R230/16-10 installation relay

In stock
SKU: 512334
€14.49
Into a basketIn the basketGo

Overview

Installation relay with manual operation, control voltage 230V AC, function: 1 S, rated operating current 16 A, 240V AC, meets the requirements of IEC/EN 60947-4-1, standard front dimension 45mm, mounting width 1 TE, mounting on top hat rail.

FeatureValue
Mounting type:DIN rail
Rated current:16 A
Control voltage type 1:AC
Control voltage 1:196 to 250 V
Max. fluorescent lamp load:303 VA
Max. Switching current (cos phi = 0.6):5 A
Installation depth:60 mm
Function:mechanical
Width in modular spaces:1
Max. incandescent lamp load:720 W
Max. fluorescent lamp load (parallel compensated):271 VA
Max. Fluorescent lamp load (duo circuit):541 VA
Supply voltage:240 V
Frequency of control voltage 1:50 to 60 Hz
Control voltage type 2:AC
Voltage type of supply voltage:AC
Number of contacts as normally open:1

Characteristics

Type of voltage of the supply voltageAC
Supply voltage240 V
Max. fluorescent lamp load303 VA
HABZ-R230/16-10
ManufacturerEaton
HANICS-R16A230B100
GTIN9010238026971
Number of contacts as normally open1
Rated current16A
Width in pitch units1
Installation depth60 mm
FunctionMechanically
Mounting typeDIN rail
Supply voltage240V
