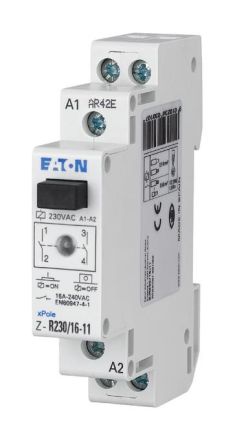

Eaton ICS-R16D024B200 Z-R23/16-20 installation relay

In stock

SKU: 512391

Price on request

€35.70

€0

Overview

Installation relay with manual operation, control voltage 24V DC, function: 2 S, rated operating current 16 A, 240V AC, meets the requirements of IEC/EN 60947-4-1, standard front dimension 45mm, mounting width 1 HP, mounting on top hat rail.

Feature	Value
Mounting type:	DIN rail
Rated current:	16 A
Control voltage type 1:	DC
Control voltage 1:	21 to 26 V
Max. fluorescent lamp load:	303 VA
Max. Switching current (cos phi = 0.6):	5 A
Installation depth:	60 mm
Function:	mechanical
Width in modular spaces:	1
Max. incandescent lamp load:	720 W
Max. fluorescent lamp load (parallel compensated):	271 VA
Max. Fluorescent lamp load (duo circuit):	541 VA
Supply voltage:	240 V
Control voltage type 2:	AC/DC
Type of supply voltage:	AC
Number of contacts as normally open:	2
