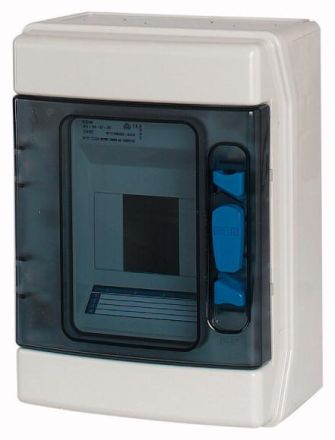

IKA damp room small distributor RAL7035, without neutral and protective conductor terminal, CNC foamed seal for protection class IP65 according to IEC/EN 62208, 4 division units, 1-row, approved for the construction of installation distributors according to IEC/EN 61439-30660-600-3, integrated module compensation for different device widths, metric cable knockouts with centering point, housing made of ABS and door made of polycarbonate, for the installation of switching and protective devices according to dimensional standard DIN 43 880 with 70 mm installation depth, AC 1000 V, DC 1500 V, RoHs compliant, consisting of plastic base with top hat rail made of galvanized sheet steel, direct mounting wall mounting holes, knockout for metric cable entries at the top and bottom, side knockouts for connecting elements for connecting two or more housings next to each other, top part with 46 mm device opening, transparent door flush with the front, can be hinged on the right or left, door hinge can be easily changed on site without removing the upper part of the housing, upper part of the housing with sealable quick-release fasteners, door can be locked with the LOCK-KIT-IKA accessory, door can be sealed, including labelling strips.
| Property | Value |
| Width in division units: | 4 |
| Number of rows: | 1 |
| Height: | 231 mm |
| Width: | 166 mm |
| Depth: | 110 mm |
| Protection class (IP): | IP65 |
| Color: | gray |
| Mounting type: | Surface-mounted |
| With lock: | no |
| Transparent cover/door: | yes |
| Housing material: | Plastic |
| RAL number: | 7035 |
| DIN rail: | yes |
| Mounting option: | yes |
| Installation depth: | 70 mm |
| EMC version: | no |
| With mounting plate: | no |
| Type of cover: | Door |
| Cover design: | with cutout |
| Inner depth: | 60 mm |
| Type of Closure: | other |
