Number of auxiliary contacts as changeover contacts2

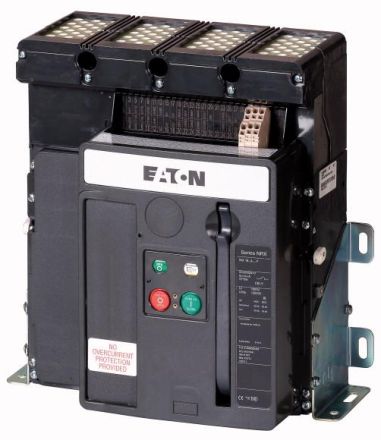

HABINX16B4-12F-1 4-pole 1250A
HAN183647
GTIN4015081793839
Connection type main circuitRail connection
Number of switches1
Designed as main switchYes
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchNo
Designed as a maintenance/repair switchYes
Version as reversing switchNo
Design of the actuating elementPush button
Conditional rated short-circuit current Iq88kA
Rated operating voltage690V
Rated continuous current Iu1250A
Rated continuous current at AC-23, 400 V1250A
Rated short-time withstand current Icw42kA
Color of the actuatorGreen
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Suitable for front mounting CentralNo
Suitable for distribution board installationYes
Suitable for intermediate constructionYes
Device typeBuilt-in device Fixed installation technology
Max. rated operating voltage Ue at AC690V
Motor drive integratedNo
Motor drive optionalYes
Number of poles4
Protection class (IP), frontIP31
Voltage release optionalYes
LockableYes
