Number of auxiliary contacts as changeover contacts2

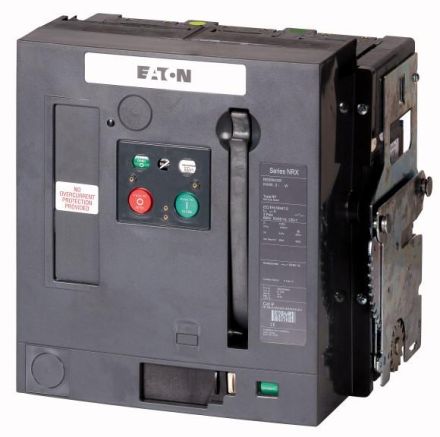

HABINX40N3-08W-1 3-pole 800A
HAN184064
GTIN4015081796038
Connection type main circuitRail connection
Number of switches1
Designed as main switchYes
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchNo
Designed as a maintenance/repair switchYes
Version as reversing switchNo
Design of the actuating elementPush button
Conditional rated short-circuit current Iq187 kA
Rated operating voltage690V
Rated continuous current Iu800A
Rated continuous current at AC-23, 400 V800A
Rated short-time withstand current Icw85kA
Color of the actuatorGreen
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Suitable for front mounting CentralNo
Suitable for distribution board installationYes
Suitable for intermediate constructionYes
Device typeBuilt-in device slide-in technology
Max. rated operating voltage Ue at AC690V
Motor drive integratedNo
Motor drive optionalYes
Number of poles3
Protection class (IP), frontIP31
Voltage release optionalYes
LockableYes
