Number of auxiliary contacts as changeover contacts2

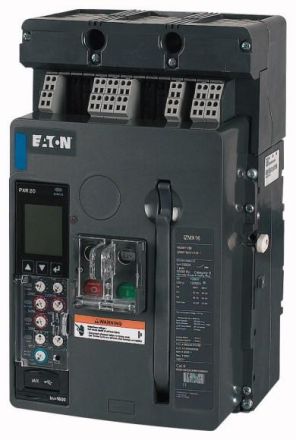

HABIZMX16B3-P06F-1 3-pole 630A 42kA
HAN183356
GTIN4015081789443
Connection type main circuitRail connection
Design of the actuating elementPush button
Rated continuous current Iu630A
Rated ultimate short-circuit breaking current Icu at 400 V, 50 Hz42kA
Rated voltage690V
Setting range of the short-time delayed short-circuit release378 to 6300 A
Setting range of the instantaneous short-circuit release1260 to 9450 A
Suitable for DIN rail mountingNo
Device typeBuilt-in device Fixed installation technology
DIN rail mounting optionalNo
Integrated earth fault protectionNo
Complete device with protection unitYes
With trip detectorYes
Motor drive integratedNo
Motor drive optionalYes
Number of poles3
Position of the connection for main circuitRear
IP protection)IP31
Overload release current setting252 to 630 A
