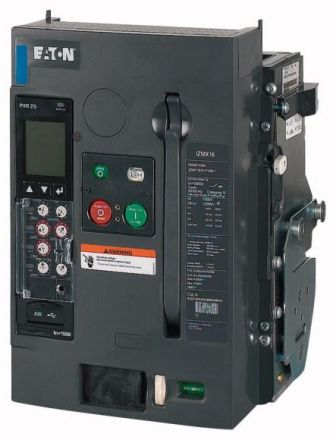

Eaton IZMX16B3-P16W-1 3-pole 1600A 42kA circuit breaker, 183473

Eaton IZMX16B3-P16W-1 3-pole 1600A 42kA circuit breaker, 183473

In stock

SKU: 479186

Price on request

€8,372.47

€0

Overview

Open circuit breaker, circuit breaker IZMX16, number of poles 3-pole, rated current = rated continuous current 1600 A, 42 kA, protective function P measurement, standard/approval IEC, installation technology withdrawable technology

Property	Value
Rated continuous current Iu:	1600 A
Connection type main circuit:	Rail connection
Number of poles:	3
Device design:	Built-in device, withdrawable technology
Position of connection for main circuit:	rear
Protection class (IP):	IP31
Overload release current setting:	640 to 1600 A
Setting range of the short-time delayed short-circuit release:	960 to 16000 A
Setting range of the instantaneous short-circuit release:	3200 to 24000 A
Rated voltage:	690 V
Rated short-circuit breaking current Icu at 400 V, 50 Hz:	42 kA
Suitable for DIN rail mounting:	no
Design of the actuating element:	push button
Integrated earth fault protection:	no
Motor drive integrated:	no
Motor drive optional:	yes
With Trip detector:	yes
Number of auxiliary contacts as changeover contacts:	2
Complete device with protection unit:	yes
DIN rail mounting optional:	no
