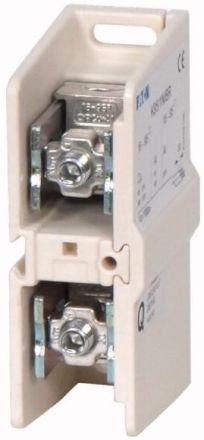

Eaton K95/1N/BR terminal, 012336

In stock
SKU: 474034
€37.96
Into a basketIn the basketGo

Overview

Connection terminals K, for AL and CU, one side round and other side flat, rated operating current Ie=160 A, number of poles=1, connection cross-sections: Cu, round cable stranded, sector cable stranded, round cable single-wire, sector cable single-wire, Al, round cable single-wire, sector cable single-wire=1x16-95 or Al, sector cable single-wire=1x35-70 other side: Cu-band or Cu-bar=mm, notes: conversion kits from band connection to cable connection available separately, terminal covers available separately,

PropertyValue
Number of poles:1
Nominal current:160 A
Safe to touch:yes
Width:37 mm
Height:115 mm
Depth:100 mm
Connection type:screws
Mounting type:screw

Characteristics

HABK95/1N/BR
ManufacturerEaton
HAN012336
GTIN4015080123361
Connection typeScrew
Width37 mm
Height115 mm
Mounting typeScrew
Rated current160A
Number of poles1
Depth100 mm
