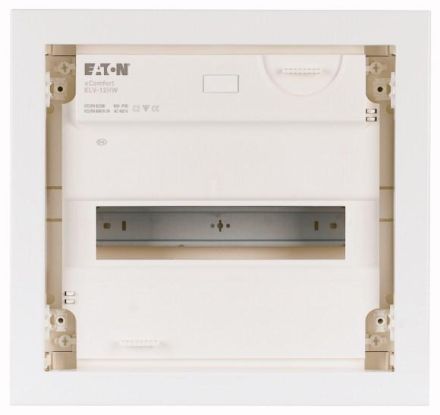

Second generation KLV hollow wall small distribution board, protection class II, plastic encapsulation with sheet steel door, front cover can be sealed and laser-labeled in accordance with IEC/EN 60670-24, plus 2 reserve division units per row, marking slots in the wall box, unique super-flat door frame design, stable door latch optionally replaceable with safety lock, cable holder for tidy wiring, optionally available in project delivery form, optional door with frame in desired RAL color, extensive range of accessories, scope of delivery: housing, device carrier, front cover, neutral and protective conductor terminals with SK screw technology, spirit level, 3D plaster compensation with up to 18mm depth compensation, cable holder, hollow wall anchor, assembly instructions, labeling sheet, practical special packaging. Standards: According to IEC/EN 60670-24, DIN 43871, IEC/EN 62208 and therefore approved for distribution according to IEC/EN 61439-3.
| Property | Value |
| Width in division units: | 12 |
| Number of rows: | 1 |
| Height: | 340 mm |
| Width: | 360 mm |
| Depth: | 100 mm |
| Protection class (IP): | IP30 |
| Color: | white |
| Mounting type: | Hollow wall |
| With lock: | no |
| Transparent cover/door: | no |
| Housing material: | Plastic |
| RAL number: | 9016 |
| DIN rail: | yes |
| Mounting option: | yes |
| Installation depth: | 88 mm |
| EMC version: | yes |
| With mounting plate: | no |
| Type of cover: | Door |
| Cover design: | with cutout |
| Inner depth: | 75 mm |
| Type of Closure: | other |
