Eaton KST34-125 distributor, 076893

In stock
SKU: 475361
€137.79
Into a basketIn the basketGo

Overview

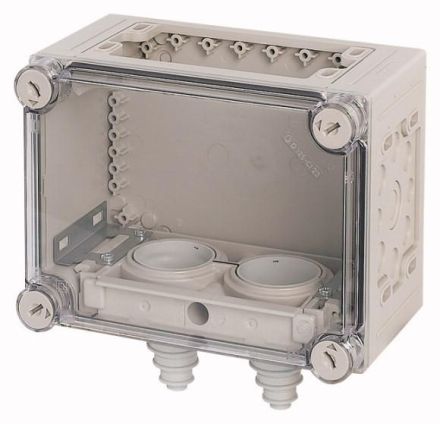

Empty distribution housing with attached cable glands, material polycarbonate, impact-resistant, protection class IP65, patented cover lock with integrated overpressure compensation, side walls closed, can be knocked out, walls open at the top or bottom, cables can be inserted from the front using split cable clamps, sealable cover locks, RAL 7035, grey (base box), transparent smoke grey (cover), installation depth with mounting plate = 125mm, cover design: transparent smoke grey, lower part design: open at the top, cable gland at the bottom

PropertyValue
Height:375 mm
Width:250 mm
Depth:150 mm
Installation depth:125 mm
Inner depth:125 mm
Protection type (IP):IP65
Protection class:II
Impact resistance:IK10
Housing material:Plastic
RAL number:7035
Mounting type:Surface-mounted
Suitable for outdoor use:yes
Surface:other
Suitable for lightning protection:yes
Mounting option:yes
With mounting plate:no
Number of cable entries:60
Number of modules:1
Number of openings for flange plates:3
Type of cover:without
Type of Door:without
Cover design:closed
Width in modular units:9
Functional integrity:other
Material thickness housing:6 mm
Material thickness door/cover:6 mm
With lock:no
Rated current (In):1600 A
Transparent cover/door:yes
Color:gray
Protection class (NEMA):other

Characteristics

HABKST34-125
ManufacturerEaton
HAN076893
GTIN4015080768937
Cultivation optionYes
Number of cable entries60
Number of modules1
Number of openings for flange plates3
Type of coverWithout
Type of doorWithout
Cover designClosed
Width250 mm
Width in pitch units9
Installation depth125 mm
ColorGray
Functional preservationOther
Suitable for outdoor useYes
Suitable for lightning protectionYes
Height375 mm
Internal depth125 mm
Housing material thickness6 mm
Material thickness door/lid6 mm
With mounting plateNo
With lockNo
Mounting typeSurface-mounted
Nominal current (In)1600A
SurfaceOther
RAL number7035
Impact resistanceIK10
IP protection)IP65
Protection class (NEMA)Other
Protection classII
Depth150 mm
Transparent lid/doorYes
Housing materialPlastic
