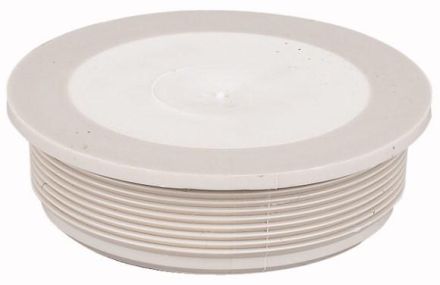

Eaton KT-M32 grommet, 207604

In stock

SKU: 473665

Price on request

€0.41

€0

Overview

Cable grommets-membrane grommets metric, protection class up to IP66, with integrated push-through membrane, cable entry=M32, bore diameter=32.5mm, cable outer diameter=1-25mmUse cable NYM/NYY, 4-core=H03VV-F3x0.75, NYM 4x16/5x10qmm, PE and thermoplastic elastomer, halogen-free, RAL 7035

Property	Value
For wall thickness:	1 to 9.5 mm
Design:	closed
Suitable for cable diameters:	1 to 25 mm
Angle design:	no
With strain relief:	no
Bore diameter:	32.5 mm
Color:	gray
Material:	other
Halogen-free:	yes
Fireproof:	no
Gas-tight:	yes
Total length:	20 mm
Surface:	other
Shrink technology:	no
Protection class (IP):	IP66
Waterproof:	yes
Material quality:	Polyethylene (PE)
Insert for cable gland:	no
Cable entry:	round
Number of Cable:	1
Thread size (metric):	32
Operating temperature:	-5 to 40 °C
