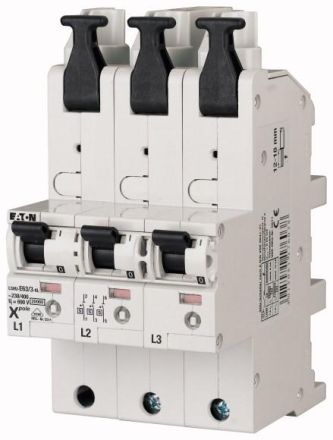

Eaton LSHU-E35/3-KL main circuit breaker, 119715

In stock
SKU: 479590
€112.69
Into a basketIn the basketGo

Overview

Selective main circuit breaker for direct mounting on 4- or 5-pole 40 mm busbar systems 12 x 5 mm and 12 x 10 mm, fastening: busbar (with quick adapter) - top hat rail (with adapter), terminal technology: screw terminals on both sides

PropertyValue
Number of poles:3
Rated current:35 A
Rated voltage:400 V
Tripping characteristic:E
Protection class (IP):IP40
Mounting type:Busbar
Rated insulation voltage Ui:690 V
Frequency:50 Hz
Pollution degree:3
Rated breaking capacity:25 kA
Rated impulse withstand voltage:6 kV
Overvoltage category:4
Switching neutral conductor:no

Characteristics

Rated breaking capacity25 kA
HABLSHU-E35/3-KL
ManufacturerEaton
HAN119715
GTIN4015081176007
Trigger characteristicsE
Rated insulation voltage Ui690V
Rated voltage400V
Rated current35A
Frequency50Hz
Switching neutral conductorNo
Mounting typeBusbar
Number of poles3
IP protection)IP40
Degree of contamination3
Overvoltage category4
