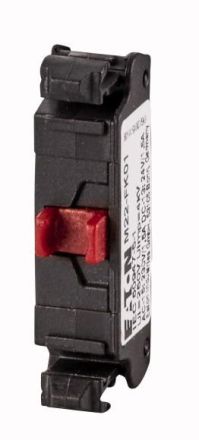

Eaton M22-FK01 flat break contact, 180791

In stock
SKU: 479345
€5.42
Into a basketIn the basketGo

Overview

Contact element, connection technology: Cage Clamp, fastening: front fastening, description: Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH, Minden, contact configuration Ö = normally closed: 1 Ö, contact configuration note: = safety function, through positive opening in accordance with IEC/EN 60947-5-1, travel of the operating part and actuating force in accordance with DIN EN 60947-5-1, K.5.4.1 positive opening travel: mm 5.5, maximum travel: mm 5.8, minimum force for positive opening: N 20, protection class: IP20, connection to SmartWire-DT: no, standards and regulations: IEC 60947-5-1

PropertyValue
Number of contacts as normally closed:1
Mounting type:Front mounting
Type of electrical connection:Spring-loaded connection
Design:plug-in
Rated operating current Ie at AC-15, 230 V:1.5 A
Socket:without

Characteristics

HABM22-FK01 flat
ManufacturerEaton
HAN180791
GTIN4015081759606
Number of contacts as opener1
VersionAttachable
Design of the electrical connectionSpring-loaded connection
Rated operating current Ie at AC-15, 230 V1.5A
VersionWithout
Mounting typeFront mounting
Eaton M22-FK01 flat break contact, 180791
Eaton M22-FK01 flat break contact, 180791
€5.42
Into a basketIn the basketGo
