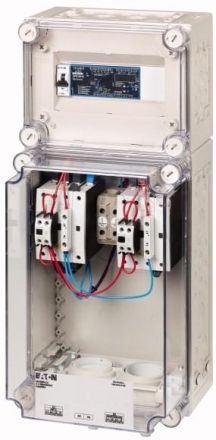

The Eaton network and system protection meets the requirements of VDE-AR-N 4105, which is mandatory for all generating plants on the low-voltage network. The ready-to-connect solution impresses with its compact dimensions and minimal power consumption. It is type-tested and suitable for all network types. Rated power: 55 kVA, rated voltage: 230/400 V, rated current AC-1: 80 A, total switch-off time (including NA protection relay): < 150 ms, permissible ambient temperature: -20...+40°C, duty cycle: 100% ED, max. connection cross-sections: fine-stranded with wire end ferrule: 35 (Cu) mm, stranded: 50 (Cu) mm, PE terminals: 50 (Cu), stranded: 50 (Cu), NA protection relay: UFR1001E (ZIEHL) integrated
