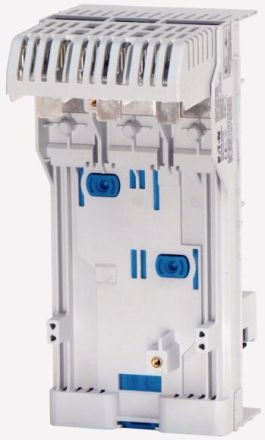

Type-tested busbar adapter for NZM circuit breakers and N load break switches, for installation on Cu flat bars 12-30x5-10, double-T and triple-T profile, rated operating current Ie=160A, can be used for NZM1,, PN1,, N (S) 1, adapter width=90mm, rated operating voltage Ue=690VAC, combination foot for snapping onto the busbar 5mm or 10mm thick, connection possible at the top or bottom by turning the adapter, temperature resistant up to 120°C, self-extinguishing according to UL 94, tracking resistance CTI 200, number of poles=3-pole, busbar center distance=60mm, can be used in conjunction with busbar system SASY 60i, UL approved, note derating
