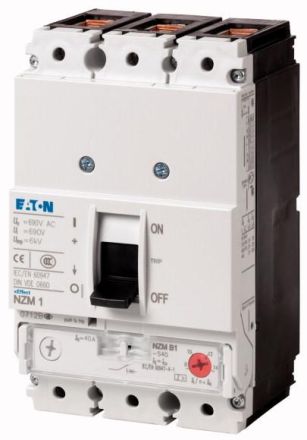

Eaton NZMB1-S1,2-CNA circuit breaker, 3p, 1,2A, 102906

In stock
SKU: 222975
€325.97
Into a basketIn the basketGo

Overview

The circuit breakers of the NZM..-S..CNA series cover all applications with just four compact sizes and are suitable for worldwide use. Installation is always flexible thanks to modular function groups. With magnetic short-circuit release in conjunction with motor protection relay, with short-circuit release without overload release. Notes: Switches comply with both UL/CSA and IEC regulations. IEC switching capacity values are included on the rating plate.

PropertyValue
Number of poles:3
Rated operating voltage:440 V
Rated operating power at AC-3, 230 V:0.18 kW
Rated operating power at AC-3, 400 V:0.37 kW
Rated continuous current Iu:1.2 A
Rated ultimate short-circuit breaking current Icu at 400 V, AC:25 kA
Tripping technology:magnetic
Phase failure sensitive:no
Main circuit connection type:other
Device design:Built-in device, fixed installation technology
Protection class (IP):IP20
Width:90 mm
Setting range of the instantaneous short-circuit release:84 to 144 A
With integrated auxiliary switch:no
With integrated undervoltage release:no
Height:165.5 mm
Depth:88 mm
Type of operating element:Toggle lever
With thermal protection:no

Characteristics

HABNZMB1-S1,2-CNA
ManufacturerEaton
HAN102906
GTIN4015081027552
Connection type main circuitOther
Design of the actuating elementRocker arm
Triggering technologyMagnetic
Rated operating power at AC-3, 230 V0.18kW
Rated operational power at AC-3, 400 V0.37kW
Rated operating voltage440V
Rated continuous current Iu1.2A
Rated ultimate short-circuit breaking current Icu at 400 V, AC25kA
Width90 mm
Setting range of the instantaneous short-circuit release84 to 144 A
Device typeBuilt-in device Fixed installation technology
Height165.5 mm
With integrated auxiliary switchNo
With integrated undervoltage releaseNo
With thermal protectionNo
Sensitive to phase failureNo
Number of poles3
IP protection)IP20
Depth88 mm
