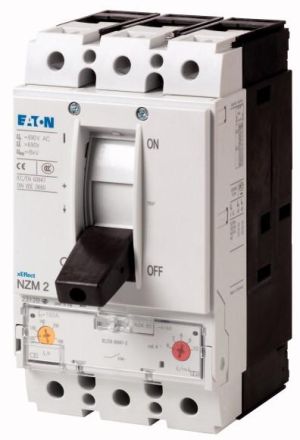

Eaton NZMB2-A160-BT circuit breaker, 3p, 160A, box terminals, 110215

In stock

SKU: 223036

Price on request

€767.72

€0

Overview

Circuit breaker NZM2, 3-pole, switching capacity 400/415 V 50 Hz (Icu): 25 kA, rated current = rated continuous current Rated current = rated continuous current (In = Iu): 160 A, installation technology: fixed installation, box terminal, standard/approval: IEC, protective function: system and cable protection

Property	Value
Rated continuous current Iu:	160 A
Connection type main circuit:	Box terminal
Number of poles:	3
Device design:	Built-in device, fixed installation technology
Position of connection for main circuit:	front
Protection class (IP):	IP20
Overload release current setting:	125 to 160 A
Setting range of the instantaneous short-circuit release:	960 to 1600 A
Rated voltage:	440 V
Rated short-circuit breaking current Icu at 400 V, 50 Hz:	25 kA
Suitable for DIN rail mounting:	no
Design of the actuating element:	toggle lever
Integrated earth fault protection:	no
Motor drive integrated:	no
Motor drive optional:	yes
With trip detector:	no
Complete device with protection unit:	yes
DIN rail mounting optional:	yes
