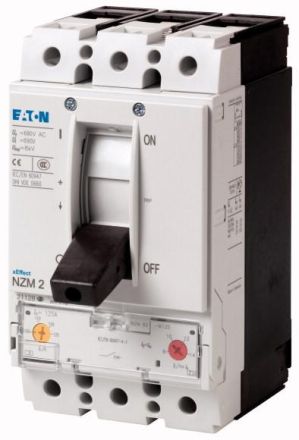

Eaton NZMB2-M125-BT circuit breaker, 3p, 125A, box terminals, 115260

Eaton NZMB2-M125-BT circuit breaker, 3p, 125A, box terminals, 115260

In stock

SKU: 223112

Price on request

€634.97

€0

Into a basketIn the basketGo

Overview

The NZM series circuit breakers cover all applications with just four compact sizes and are suitable for the IEC market. Installation is always flexible thanks to modular function groups.

Property	Value
Number of poles:	3
Rated operating voltage:	440 V
Rated operating power at AC-3, 230 V:	37 kW
Rated operating power at AC-3, 400 V:	55 kW
Rated continuous current Iu:	125 A
Rated short-circuit breaking current Icu at 400 V, AC:	25 kA
Overload release current setting:	100 to 125 A
Triggering technology:	thermomagnetic
Phase failure sensitive:	no
Connection type main circuit:	other
Device design:	Built-in device, fixed installation technology
Protection class (IP):	IP20
Width:	140 mm
Setting range of the instantaneous short-circuit release:	1000 to 1750 A
With integrated auxiliary switch:	no
With integrated undervoltage release:	no
Height:	206 mm
Depth:	149 mm
Design of the actuating element:	toggle lever
With thermal protection:	yes

Characteristics

HABNZMB2-M125-BT

Manufacturer

HAN115260

GTIN4015081146604

Connection type main circuitOther

Design of the actuating elementRocker arm

Triggering technologyThermomagnetic

Rated operating power at AC-3, 230 V37kW

Rated operational power at AC-3, 400 V55kW

Rated operating voltage440V

Rated continuous current Iu125A

Rated ultimate short-circuit breaking current Icu at 400 V, AC25kA

Width140 mm

Setting range of the instantaneous short-circuit release1000 to 1750 A

Device typeBuilt-in device Fixed installation technology

Height206 mm

With integrated auxiliary switchNo

With integrated undervoltage releaseNo

With thermal protectionYes

Sensitive to phase failureNo

Number of poles3

IP protection)IP20

Depth149 mm

Overload release current setting100 to 125 A
