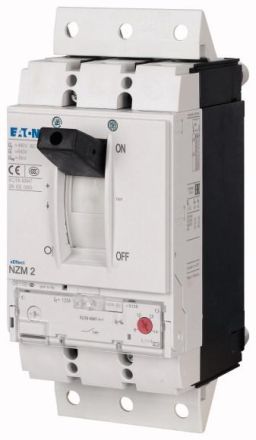

Eaton NZMB2-S200-SVE circuit breaker, 3p, 200A, plug-in insert, 113201

Eaton NZMB2-S200-SVE circuit breaker, 3p, 200A, plug-in insert, 113201

In stock

SKU: 223139

Price on request

€929.20

€0

Overview

The circuit breakers of the NZM..-S series cover all applications with only four compact sizes and are suitable for the IEC market. Installation is always flexible thanks to modular function groups. With magnetic short-circuit release in conjunction with motor protection relay, with short-circuit release without overload release. Notes: Circuit breakers meet all requirements of the AC-3 usage category.

Property	Value
Number of poles:	3
Rated operating voltage:	440 V
Rated operating power at AC-3, 230 V:	55 kW
Rated operating power at AC-3, 400 V:	110 kW
Rated continuous current Iu:	200 A
Rated ultimate short-circuit breaking current Icu at 400 V, AC:	18.5 kA
Tripping technology:	magnetic
Phase failure sensitive:	no
Main circuit connection type:	screw connection
Device design:	Built-in device plug-in technology
Protection class (IP):	IP20
Width:	105 mm
Setting range of the instantaneous short-circuit release:	8 to 44328 A
With integrated auxiliary switch:	no
With integrated undervoltage release:	no
Height:	245 mm
Depth:	180 mm
Type of operating element:	toggle lever
With thermal protection:	no
