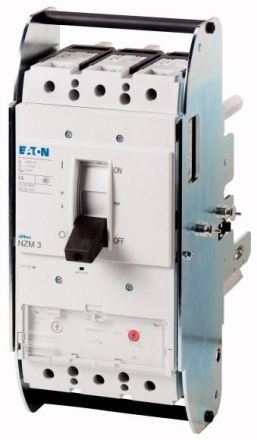

Eaton NZMC3-S500-AVE circuit breaker, 3p, 500A, withdrawable, 113515

Eaton NZMC3-S500-AVE circuit breaker, 3p, 500A, withdrawable, 113515

In stock

SKU: 223289

Price on request

€2,230.64

€0

Overview

The circuit breakers of the NZM..-S series cover all applications with only four compact sizes and are suitable for the IEC market. Installation is always flexible thanks to modular function groups. With magnetic short-circuit release in conjunction with motor protection relay, with short-circuit release without overload release. Notes: Circuit breakers meet all requirements of the AC-3 usage category.

Property	Value
Number of poles:	3
Rated operating voltage:	690 V
Rated operating power at AC-3, 230 V:	160 kW
Rated operating power at AC-3, 400 V:	250 kW
Rated continuous current Iu:	500 A
Rated ultimate short-circuit breaking current Icu at 400 V, AC:	22.5 kA
Tripping technology:	magnetic
Phase failure sensitive:	no
Main circuit connection type:	screw connection
Device design:	Built-in device, plug-in technology
Protection class (IP):	IP20
Width:	185 mm
Setting range of the instantaneous short-circuit release:	6 to 10 A
With integrated auxiliary switch:	no
With integrated undervoltage release:	no
Height:	260 mm
Depth:	346 mm
Type of operating element:	Toggle lever
With thermal protection:	no
