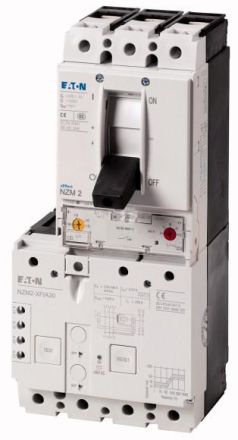

Eaton NZMH2-A100-FIA30 circuit breaker 3p +F-current 30mA, 158530

Eaton NZMH2-A100-FIA30 circuit breaker 3p +F-current 30mA, 158530

In stock

SKU: 223397

Price on request

€3,355.55

€0

Overview

Circuit breaker NZM2, 3-pole, switching capacity 400/415 V 50 Hz (Icu): 150 kA, rated current = rated continuous current Rated current = rated continuous current (In = Iu): 100 A, installation technology: fixed installation, screw connection, standard/approval: IEC, protective function: system and cable protection, fire protection, personal protection

Property	Value
Rated continuous current Iu:	100 A
Connection type main circuit:	Screw connection
Number of poles:	3
Device design:	Built-in device, fixed installation technology
Position of connection for main circuit:	front
Protection class (IP):	IP20
Overload release current setting:	80 to 100 A
Setting range of the instantaneous short-circuit release:	600 to 1000 A
Rated short-circuit breaking current Icu at 400 V, 50 Hz:	150 kA
Suitable for DIN rail mounting:	no
Design of the actuating element:	toggle lever
Integrated earth fault protection:	no
Motor drive integrated:	no
Motor drive optional:	yes
With trip detector:	no
Complete device with protection unit:	yes
DIN rail mounting optional:	yes
