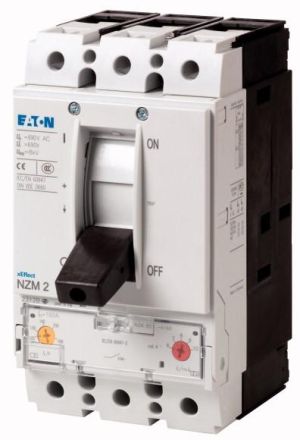

Eaton NZMH2-A200-S1 circuit breaker, 3p, 200A, 1000V , 290365

In stock

SKU: 223429

Price on request

€1,475.23

€0

Overview

Circuit breaker NZM2, 3-pole, switching capacity 1000 V 50/60 Hz (Ics): 10 kA, rated current = rated continuous current (In = Iu): 200 A, installation technology: fixed installation, screw connection, standard/approval: IEC, protective function: system and cable protection

Property	Value
Rated continuous current Iu:	200 A
Connection type main circuit:	Screw connection
Number of poles:	3
Device design:	Built-in device, fixed installation technology
Position of connection for main circuit:	front
Protection class (IP):	IP20
Overload release current setting:	160 to 200 A
Setting range of the instantaneous short-circuit release:	1200 to 2000 A
Rated voltage:	1000 V
Rated short-circuit breaking current Icu at 400 V, 50 Hz:	150 kA
Suitable for DIN rail mounting:	no
Design of the actuating element:	toggle lever
Integrated earth fault protection:	no
Motor drive integrated:	no
Motor drive optional:	yes
With trip detector:	no
Complete device with protection unit:	yes
DIN rail mounting optional:	yes
