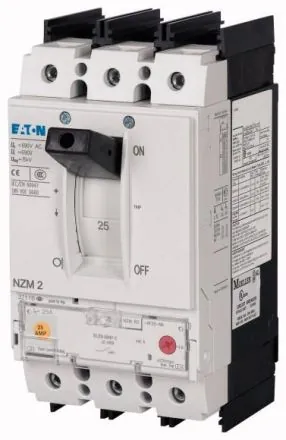

Circuit breaker NZM2, 3-pole, Switching capacity SCCR 480Y/277 V 60 Hz(Icu): 150 kA, Switching capacity SCCR 600Y/347 V 60 Hz(Icu): 65 kA, Switching capacity SCCR 480 V 60 Hz(Icu): 150 kA, Rated current = rated continuous current Rated current = rated continuous current(In = Iu): 25 A, Installation technology: fixed installation, Standard equipment: screw connection, Standard/approval: UL/CSA, IEC, Protective function: system and cable protection
| Property | Value |
| Rated continuous current Iu: | 25 A |
| Connection type main circuit: | Screw connection |
| Number of poles: | 3 |
| Device design: | Built-in device, fixed installation technology |
| Position of connection for main circuit: | front |
| Protection class (IP): | IP20 |
| Overload release current setting: | 25 A |
| Setting range of the instantaneous short-circuit release: | 350 A |
| Rated voltage: | 690 V |
| Rated short-circuit breaking current Icu at 400 V, 50 Hz: | 150 kA |
| Suitable for DIN rail mounting: | no |
| Design of the actuating element: | toggle lever |
| Integrated earth fault protection: | no |
| Motor drive integrated: | no |
| Motor drive optional: | yes |
| With trip detector: | no |
| Complete device with protection unit: | yes |
| DIN rail mounting optional: | yes |
