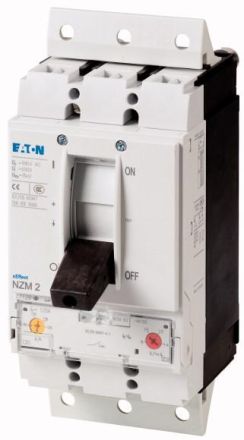

Eaton NZMH2-M100-SVE circuit breaker, 3p, 100A, plug-in insert, 113361

Eaton NZMH2-M100-SVE circuit breaker, 3p, 100A, plug-in insert, 113361

In stock

SKU: 223525

Price on request

€647.29

€0

Overview

The circuit breakers of the NZM..-M series cover all applications with only four compact sizes and are suitable for the IEC market. Installation is always flexible thanks to modular function groups. With thermomagnetic release for motor protection. Notes: tripping class 10A, IEC/EN 60947-4-1, IEC/EN 60947-2, circuit breakers meet all requirements of the AC-3 usage category.

Property	Value
Number of poles:	3
Rated operating voltage:	690 V
Rated operating power at AC-3, 230 V:	30 kW
Rated operating power at AC-3, 400 V:	55 kW
Rated continuous current Iu:	100 A
Rated ultimate short-circuit breaking current Icu at 400 V, AC:	130 kA
Overload release current setting:	80 to 100 A
Triggering technology:	thermomagnetic
Phase failure sensitive:	no
Main circuit connection type:	screw connection
Device design:	Built-in device, plug-in technology
Protection class (IP):	IP20
Width:	105 mm
Setting range of the instantaneous short-circuit release:	800 to 1400 A
With integrated auxiliary switch:	no
With integrated undervoltage release:	no
Height:	245 mm
Depth:	180 mm
Design of the actuating element:	toggle lever
With thermal protection:	yes
