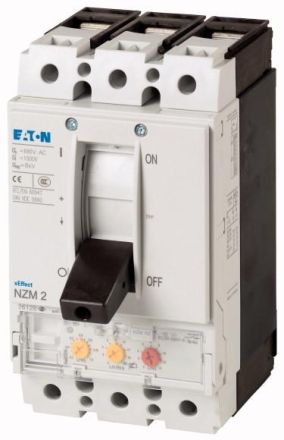

Eaton NZMH2-ME220 circuit breaker, 3p, 220A , 265788

Eaton NZMH2-ME220 circuit breaker, 3p, 220A , 265788

In stock

SKU: 223552

Price on request

€1,503.49

€0

Overview

The circuit breakers of the NZM..-ME series cover all applications with only four compact sizes and are suitable for the IEC market. Installation is always flexible thanks to modular function groups. With electronic release for motor protection with phase failure sensitivity. Notes: IEC/EN 60947-4-1, IEC/EN 60947-2, effective value measurement and thermal memory, adjustable inertia setting tr: 2-20s at 6xIr and infinite (without overload release)

Property	Value
Number of poles:	3
Rated operating voltage:	690 V
Rated operating power at AC-3, 230 V:	55 kW
Rated operating power at AC-3, 400 V:	110 kW
Rated continuous current Iu:	220 A
Rated ultimate short-circuit breaking current Icu at 400 V, AC:	130 kA
Overload release current setting:	110 to 220 A
Triggering technology:	electronic
Phase failure sensitive:	yes
Connection type main circuit:	screw connection
Device design:	Built-in device, fixed installation technology
Protection class (IP):	IP20
Width:	105 mm
Setting range of the instantaneous short-circuit release:	220 to 3080 A
With integrated auxiliary switch:	no
With integrated undervoltage release:	no
Height:	184 mm
Depth:	149 mm
Type of operating element:	Toggle lever
With thermal protection:	yes
