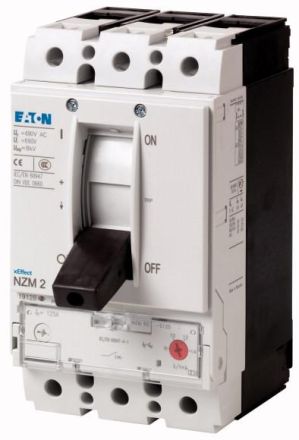

Eaton NZMH2-S8-CNA circuit breaker, 3p, 8A, short circuit protection, 103047

Eaton NZMH2-S8-CNA circuit breaker, 3p, 8A, short circuit protection, 103047

In stock

SKU: 223590

Price on request

€462.02

€0

Overview

The circuit breakers of the NZM..-S..CNA series cover all applications with just four compact sizes and are suitable for worldwide use. Installation is always flexible thanks to modular function groups. With magnetic short-circuit release in conjunction with motor protection relay, with short-circuit release without overload release. Notes: Switches comply with both UL/CSA and IEC regulations. IEC switching capacity values are included on the rating plate.

Property	Value
Number of poles:	3
Rated operating voltage:	690 V
Rated operating power at AC-3, 230 V:	1.5 kW
Rated operating power at AC-3, 400 V:	3 kW
Rated continuous current Iu:	8 A
Rated ultimate short-circuit breaking current Icu at 400 V, AC:	150 kA
Tripping technology:	magnetic
Phase failure sensitive:	no
Connection type main circuit:	Screw connection
Device design:	Built-in device, fixed installation technology
Protection class (IP):	IP20
Width:	105 mm
Setting range of the instantaneous short-circuit release:	48 to 88 A
With integrated auxiliary switch:	no
With integrated undervoltage release:	no
Height:	195 mm
Depth:	149 mm
Version of the actuating element:	Toggle lever
With thermal protection:	no
