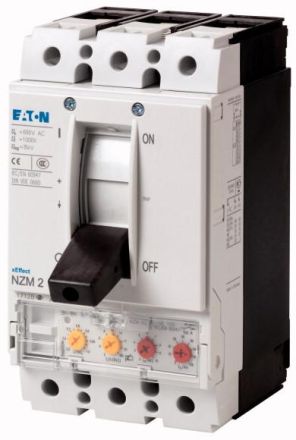

HABNZMH2-VE160-S1
HAN100778
GTIN4015081006786
Connection type main circuitScrew connection
Design of the actuating elementRocker arm
Rated continuous current Iu160A
Rated ultimate short-circuit breaking current Icu at 400 V, 50 Hz150kA
Rated voltage1000V
Setting range of the short-time delayed short-circuit release160 to 1600 A
Setting range of the instantaneous short-circuit release1920 A
Suitable for DIN rail mountingNo
Device typeBuilt-in device Fixed installation technology
DIN rail mounting optionalYes
Integrated earth fault protectionNo
Complete device with protection unitYes
With trip detectorNo
Motor drive integratedNo
Motor drive optionalYes
Number of poles3
Position of the connection for main circuitIn front
IP protection)IP20
Overload release current setting80 to 160 A
