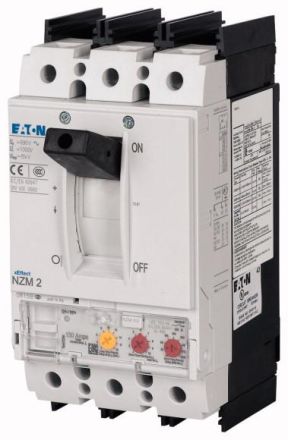

Eaton NZMH2-VEF150-BT-NA circuit breaker, 3p, 150A, box terminals, 107598

Eaton NZMH2-VEF150-BT-NA circuit breaker, 3p, 150A, box terminals, 107598

In stock

SKU: 223606

Price on request

€1,505.34

€0

Overview

The circuit breakers of the NZM..-VE..NA series cover all applications with just four compact sizes and are suitable for worldwide use. Installation is always flexible thanks to modular function groups. With electronic release for system and cable protection, selective and generator protection. Overload, short-time delayed and instantaneous short-circuit protection. Notes: Switches comply with both UL/CSA and IEC regulations. IEC switching capacity values included on the rating plate. Fixed overload release Ir, RMS measurement and thermal memory. Adjustable inertia setting tr: 2-20s at 6xIr. Adjustable delay time tsd: levels: 0, 20, 60, 100, 200, 300, 500, 750, 1000ms. i2t constant function: fixed OFF

Property	Value
Rated continuous current Iu:	150 A
Connection type main circuit:	Box terminal
Number of poles:	3
Device design:	Built-in device, fixed installation technology
Position of connection for main circuit:	front
Protection class (IP):	IP20
Overload release current setting:	150 A
Setting range of the short-time delayed short-circuit release:	300 to 1500 A
Setting range of the instantaneous short-circuit release:	1800 A
Rated voltage:	690 V
Rated short-circuit breaking current Icu at 400 V, 50 Hz:	150 kA
Suitable for DIN rail mounting:	no
Design of the actuating element:	toggle lever
Integrated earth fault protection:	no
Motor drive integrated:	no
Motor drive optional:	yes
With Trigger detector:	no
Complete device with protection unit:	yes
DIN rail mounting optional:	yes
