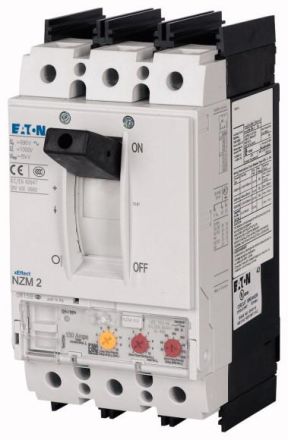

Eaton NZMH2-VEF175-NA circuit breaker, 3p, 175A , 271132

Eaton NZMH2-VEF175-NA circuit breaker, 3p, 175A , 271132

In stock

SKU: 223609

Price on request

€1,473.86

€0

Overview

Circuit breaker NZM2, 3-pole, switching capacity SCCR 480Y/277 V 60 Hz(Icu): 100 kA, switching capacity SCCR 600Y/347 V 60 Hz(Icu): 50 kA, switching capacity SCCR 480 V 60 Hz(Icu): 100 kA, rated current = rated continuous current rated current = rated continuous current(In = Iu): 175 A, installation technology: fixed installation, standard equipment: screw connection, standard/approval: UL/CSA, IEC, protective function: system, cable, selective and generator protection

Property	Value
Rated continuous current Iu:	175 A
Connection type main circuit:	Screw connection
Number of poles:	3
Device design:	Built-in device, fixed installation technology
Position of connection for main circuit:	front
Protection class (IP):	IP20
Overload release current setting:	175 A
Setting range of the short-time delayed short-circuit release:	350 to 1750 A
Setting range of the instantaneous short-circuit release:	2100 A
Rated voltage:	690 V
Rated short-circuit breaking current Icu at 400 V, 50 Hz:	150 kA
Suitable for DIN rail mounting:	no
Design of the actuating element:	toggle lever
Integrated earth fault protection:	no
Motor drive integrated:	no
Motor drive optional:	yes
With Trigger detector:	no
Complete device with protection unit:	yes
DIN rail mounting optional:	yes
