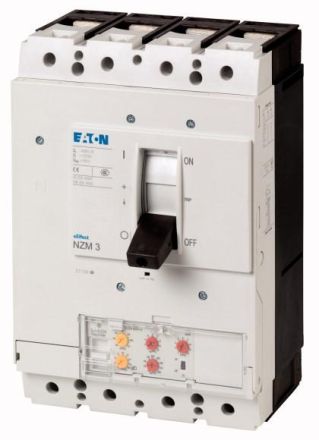

Eaton NZMH3-4-VE630/400 circuit breaker, 4p, 630A, 400A, in 4th pole, 265967

Eaton NZMH3-4-VE630/400 circuit breaker, 4p, 630A, 400A, in 4th pole, 265967

In stock

SKU: 223659

Price on request

€4,093.10

€0

Overview

Circuit breaker NZM3, 4-pole, switching capacity 400/415 V 50 Hz (Icu): 150 kA, rated current = rated continuous current Rated current = rated continuous current (In = Iu): 630 A, installation technology: fixed installation, screw connection, standard/approval: IEC, protective function: system, cable, selective and generator protection

Property	Value
Rated continuous current Iu:	630 A
Connection type main circuit:	Screw connection
Number of poles:	4
Device design:	Built-in device, fixed installation technology
Position of connection for main circuit:	front
Protection class (IP):	IP20
Overload release current setting:	315 to 630 A
Setting range of the short-time delayed short-circuit release:	472 to 4410 A
Setting range of the instantaneous short-circuit release:	1260 to 5040 A
Rated voltage:	690 V
Rated short-circuit breaking current Icu at 400 V, 50 Hz:	150 kA
Suitable for DIN rail mounting:	no
Design of the actuating element:	toggle lever
Integrated earth fault protection:	no
Motor drive integrated:	no
Motor drive optional:	yes
With Trigger detector:	no
Complete device with protection unit:	yes
DIN rail mounting optional:	no
