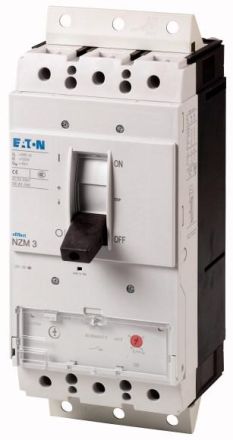

Eaton NZMH3-S400-SVE circuit breaker, 3p, 400A, plug-in insert, 168918

Eaton NZMH3-S400-SVE circuit breaker, 3p, 400A, plug-in insert, 168918

In stock

SKU: 223728

Price on request

€2,080.11

€0

Into a basketIn the basketGo

Overview

The NZM series circuit breakers cover all applications with just four compact sizes and are suitable for the IEC market. Installation is always flexible thanks to modular function groups.

Property	Value
Number of poles:	3
Rated operating voltage:	690 V
Rated operating power at AC-3, 230 V:	132 kW
Rated operating power at AC-3, 400 V:	200 kW
Rated continuous current Iu:	400 A
Rated ultimate short-circuit breaking current Icu at 400 V, AC:	150 kA
Tripping technology:	magnetic
Phase failure sensitive:	no
Main circuit connection type:	other
Device design:	Built-in device plug-in technology
Protection class (IP):	IP20
Width:	140 mm
Setting range of the instantaneous short-circuit release:	7 to 44328 A
With integrated auxiliary switch:	no
With integrated undervoltage release:	no
Height:	215.2 mm
Depth:	335 mm
Type of operating element:	Toggle lever
With thermal protection:	no

Characteristics

HABNZMH3-S400-SVE

Manufacturer

HAN168918

GTIN4015081654116

Connection type main circuitOther

Design of the actuating elementRocker arm

Triggering technologyMagnetic

Rated operating power at AC-3, 230 V132kW

Rated operational power at AC-3, 400 V200kW

Rated operating voltage690V

Rated continuous current Iu400A

Rated ultimate short-circuit breaking current Icu at 400 V, AC150kA

Width140 mm

Setting range of the instantaneous short-circuit release7 to 44328 A

Device typeBuilt-in device plug-in technology

Height215.2 mm

With integrated auxiliary switchNo

With integrated undervoltage releaseNo

With thermal protectionNo

Sensitive to phase failureNo

Number of poles3

IP protection)IP20

Depth335 mm
