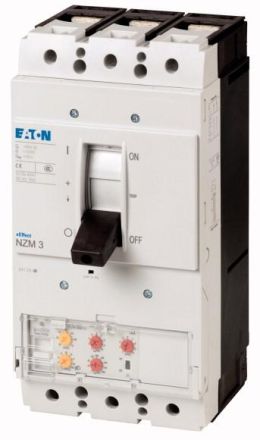

Eaton NZMH3-VE600-NA circuit breaker, 3p, 600A , 269337

Eaton NZMH3-VE600-NA circuit breaker, 3p, 600A , 269337

In stock

SKU: 223746

Price on request

€3,217.33

€0

Overview

Circuit breaker NZM3, 3-pole, Switching capacity SCCR 480Y/277 V 60 Hz(Icu): 100 kA, Switching capacity SCCR 600Y/347 V 60 Hz(Icu): 50 kA, Switching capacity SCCR 480 V 60 Hz(Icu): 100 kA, Rated current = rated continuous current Rated current = rated continuous current(In = Iu): 600 A, Installation technology: fixed installation, Standard equipment: screw connection, Standard/approval: UL/CSA, IEC, Protective function: system, cable, selective and generator protection

Property	Value
Rated continuous current Iu:	600 A
Connection type main circuit:	Screw connection
Number of poles:	3
Device design:	Built-in device, fixed installation technology
Position of connection for main circuit:	front
Protection class (IP):	IP20
Overload release current setting:	300 to 600 A
Setting range of the short-time delayed short-circuit release:	450 to 4200 A
Setting range of the instantaneous short-circuit release:	1200 to 4800 A
Rated voltage:	690 V
Rated short-circuit breaking current Icu at 400 V, 50 Hz:	150 kA
Suitable for DIN rail mounting:	no
Design of the actuating element:	toggle lever
Integrated earth fault protection:	no
Motor drive integrated:	no
Motor drive optional:	yes
With Trigger detector:	no
Complete device with protection unit:	yes
DIN rail mounting optional:	no
