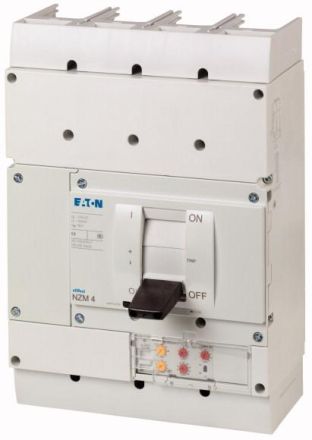

HABNZMH4-4-VE800
HAN265987
GTIN4015082659875
Connection type main circuitScrew connection
Design of the actuating elementRocker arm
Rated continuous current Iu800A
Rated ultimate short-circuit breaking current Icu at 400 V, 50 Hz50kA
Rated voltage690V
Setting range of the short-time delayed short-circuit release800 to 8000 A
Setting range of the instantaneous short-circuit release1600 to 9600 A
Suitable for DIN rail mountingNo
Device typeBuilt-in device Fixed installation technology
DIN rail mounting optionalNo
Integrated earth fault protectionNo
Complete device with protection unitYes
With trip detectorNo
Motor drive integratedNo
Motor drive optionalYes
Number of poles4
Position of the connection for main circuitIn front
IP protection)IP20
Overload release current setting400 to 800 A
