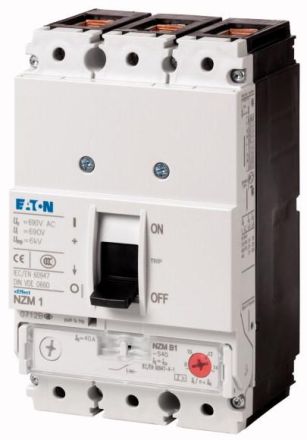

Eaton NZMN1-S80-CNA circuit breaker, 3p, 80A , 281279

In stock
SKU: 223933
€403.70
Into a basketIn the basketGo

Overview

The circuit breakers of the NZM..-S..CNA series cover all applications with just four compact sizes and are suitable for worldwide use. Installation is always flexible thanks to modular function groups. With magnetic short-circuit release in conjunction with motor protection relay, with short-circuit release without overload release. Notes: Switches comply with both UL/CSA and IEC regulations. IEC switching capacity values are included on the rating plate.

PropertyValue
Number of poles:3
Rated operating voltage:690 V
Rated operating power at AC-3, 230 V:22 kW
Rated operating power at AC-3, 400 V:45 kW
Rated continuous current Iu:80 A
Rated ultimate short-circuit breaking current Icu at 400 V, AC:35 kA
Tripping technology:magnetic
Phase failure sensitive:no
Connection type main circuit:other
Device design:Built-in device, fixed installation technology
Protection class (IP):IP20
Width:90 mm
Setting range of the instantaneous short-circuit release:8 to 14 A
With integrated auxiliary switch:no
With integrated undervoltage release:no
Height:165.5 mm
Depth:88 mm
Version of the Actuating element:Toggle lever
With thermal protection:no

Characteristics

HABNZMN1-S80-CNA
ManufacturerEaton
HAN281279
GTIN4015082812799
Connection type main circuitOther
Design of the actuating elementRocker arm
Triggering technologyMagnetic
Rated operating power at AC-3, 230 V22kW
Rated operational power at AC-3, 400 V45kW
Rated operating voltage690V
Rated continuous current Iu80A
Rated ultimate short-circuit breaking current Icu at 400 V, AC35kA
Width90 mm
Setting range of the instantaneous short-circuit release8 to 14 A
Device typeBuilt-in device Fixed installation technology
Height165.5 mm
With integrated auxiliary switchNo
With integrated undervoltage releaseNo
With thermal protectionNo
Sensitive to phase failureNo
Number of poles3
IP protection)IP20
Depth88 mm
